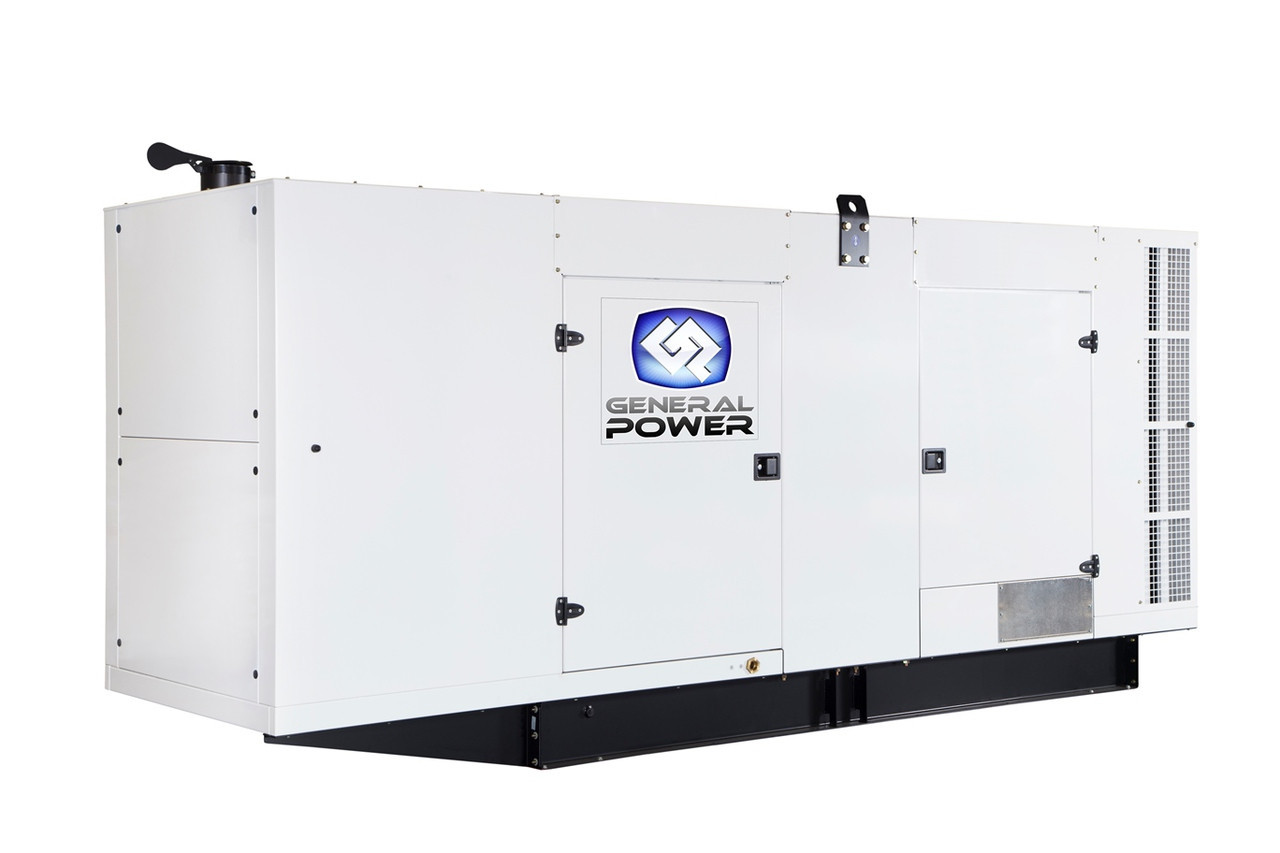

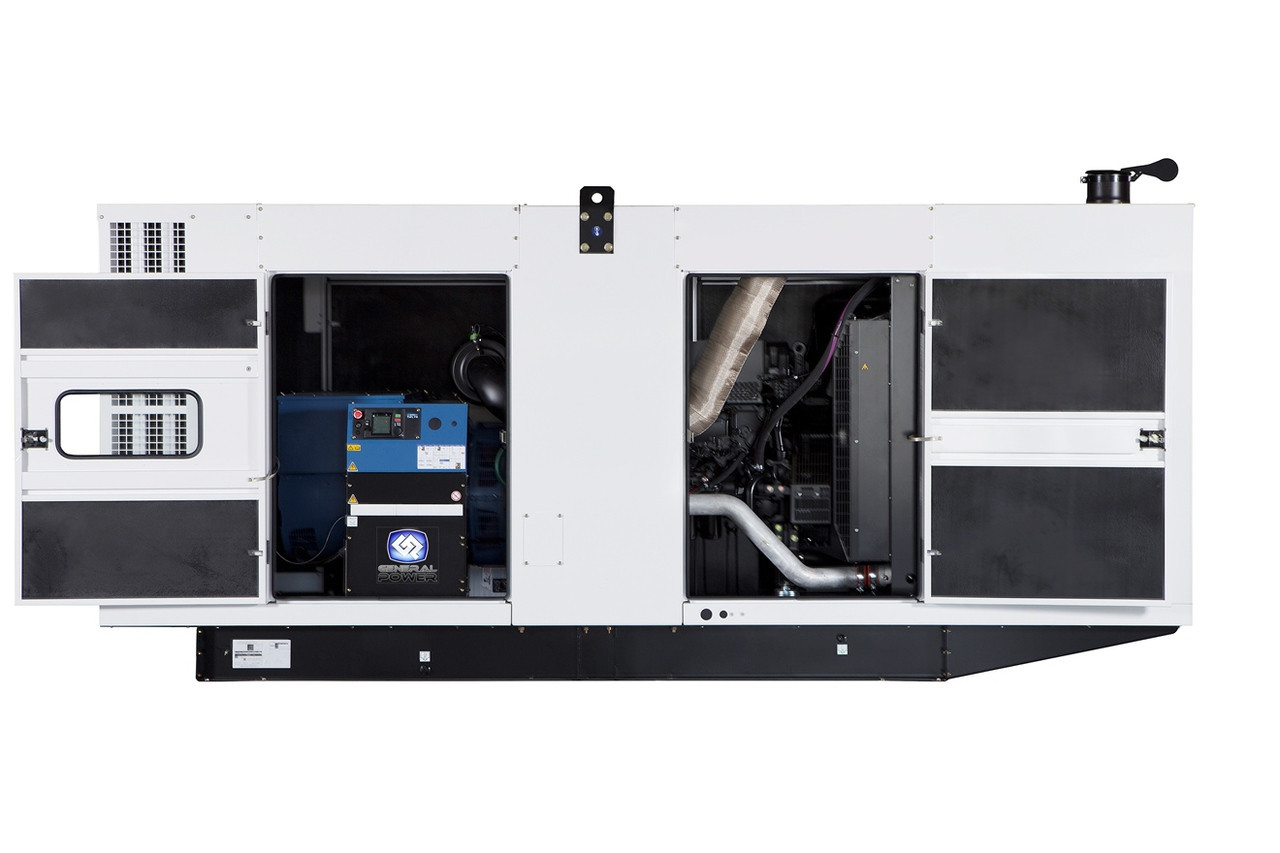

550 KW VOLVO Generator 688 KVA, Three phase

×
×
Brand:
Price:
Get An Immediate Quote!
Availability:
IN STOCK!
  • Product Description

    550 KW VOLVO Diesel Generator 688 KVA, Three phase, Enclosed type, EPA Compliant

    • VOLVO TAD1642GE, Turbocharged Heavy duty diesel engine, 4 stroke, 1800RPM, Liquid cooled, Electronic governor, U.S. EPA / CARB TIER 2
    • LEROY SOMER LSA472M7, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
    • SCHNEIDER, Main line circuit breaker, 3 pole, set mounted, wired and maximum output rated for complete generator protection
    • TELYS2, ADVANCED / 06x MULTILINGUAL, Digital auto-start/stop control panel with built-in Remote monitoring/control capability. All genset parameter, alarms and control functions. RS232 and RS485
    • DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 610L (161Gal) (25.6 Gal/Hour @ 75%) (6 hours runtime autonomy @ 75% load)

    BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

    • IP56 rated Weather proof / Super Silent enclosure. 12 gauge electro zinc coated steel for maximum corrosion resistance
    • AUTO start/stop control feature included for remote start via 2-Wire dry contact
    • U.S. EPA / CARB TIER 2 compliant engine for Stationary application as per current U.S. Environmental Protection Agency regulations
    • Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-0.5% speed regulation
    • 12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR R250, +/- 0.5% regulation
    • Radiator rated for T°of 50°C [122°F] max with mechanical fan
    • Microprocessor based control panel
    • 24V charging alternator and 24V electrical starter motor
    • 24V charged DC starting battery with electrolyte and cables
    • 29dB(A) Critical class silencer installed inside the enclosure
    • Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
    • Mechanically welded chassis with anti-vibration isolators
    • Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
    • User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
    • The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
    • Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
    • Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530?_?_??and?_?_??ISO9001:2008
