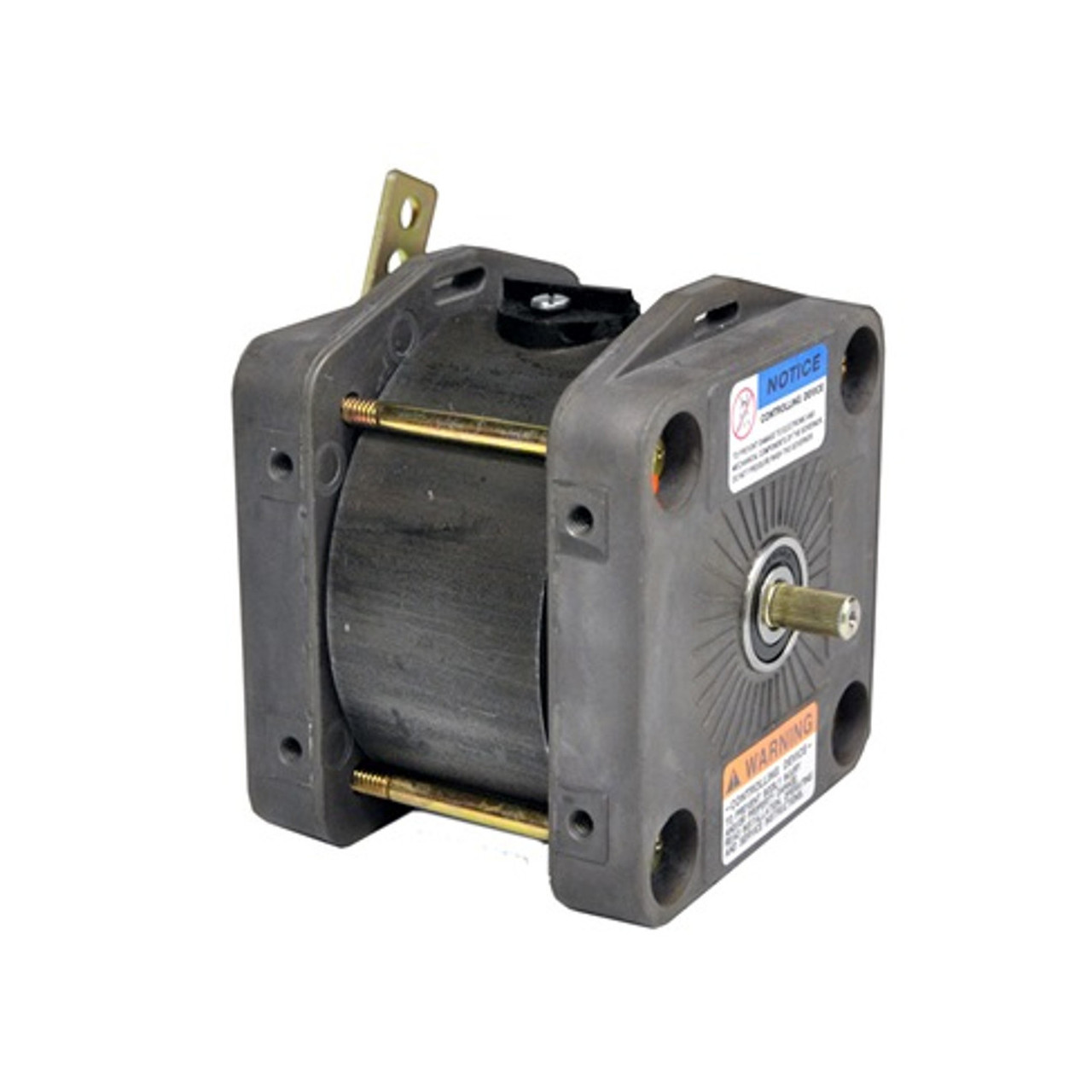

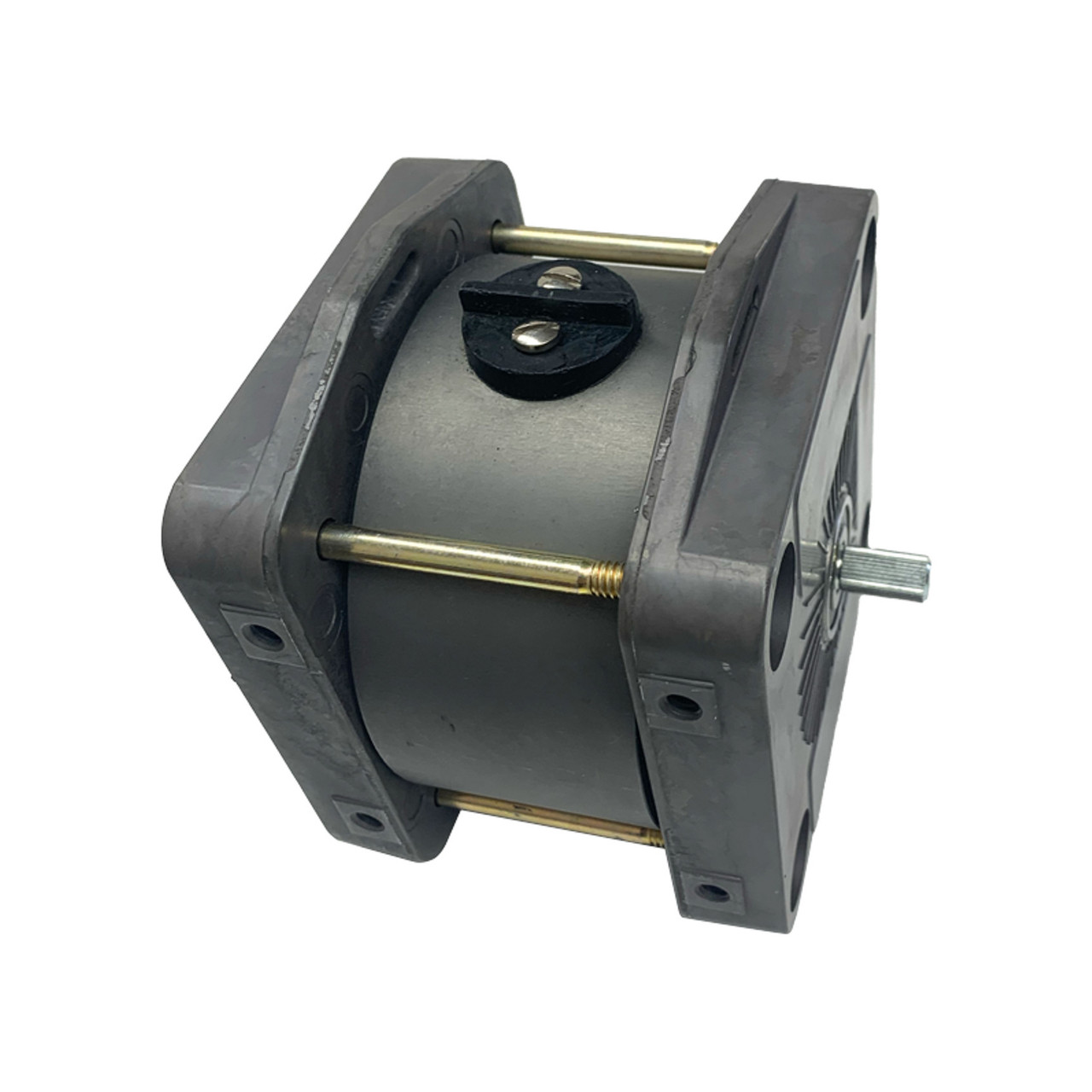

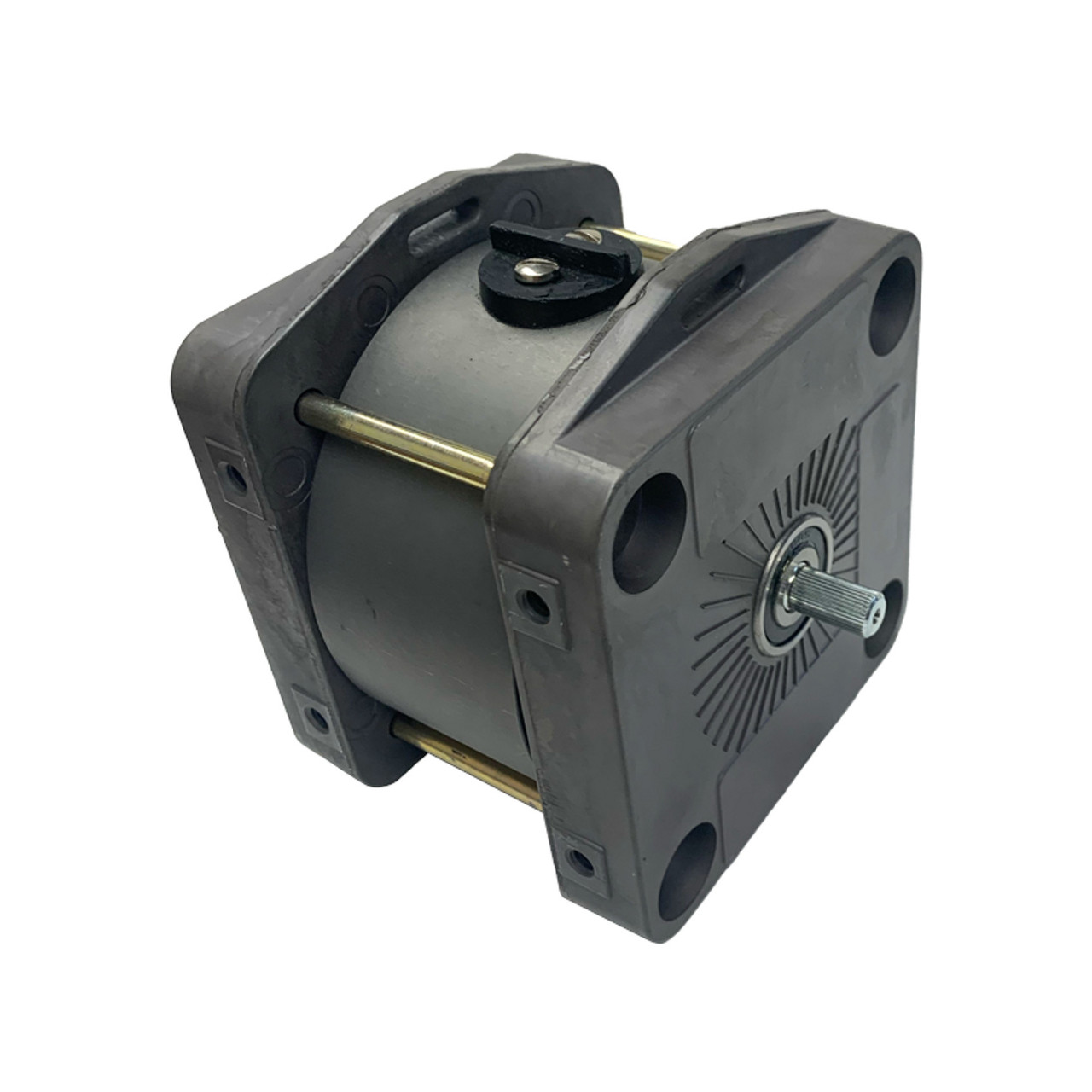

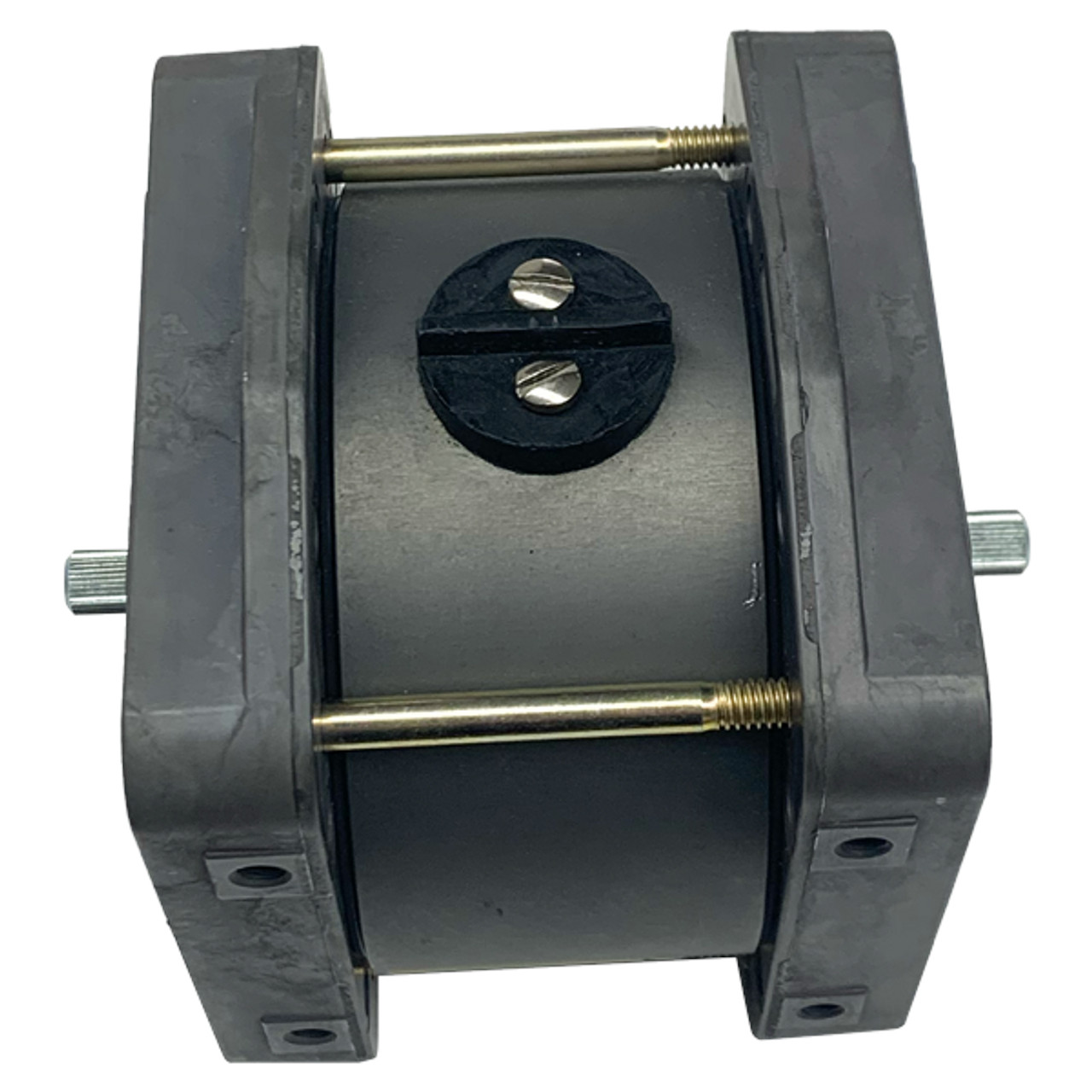

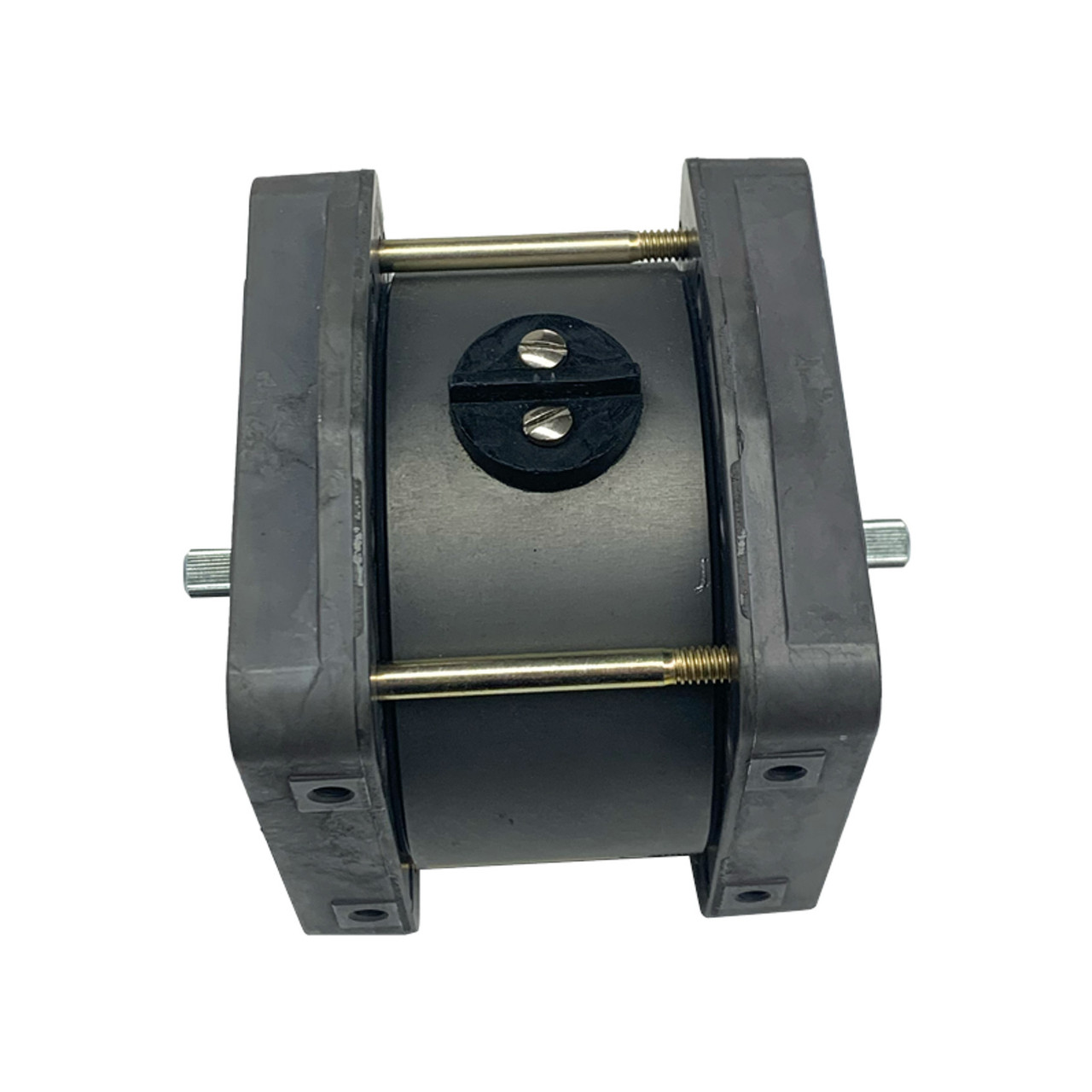

8256-022 EPG ACTUATOR 12 VDC

Usually Ships in 48 Hours
Minimum Purchase:
1 unit(s)
Maximum Purchase:
2 unit(s)
  • Product Description

    Electrically Powered Governor Systems

    The 512/524 and 1712/1724 EPGs are three-component governing systems for

    12 or 24 VDC operation. All EPG systems include an actuator, an electronic speed

    control, and magnetic pickup.

    Isochronous electronic controls are available with either start-fuel limit or with switch selected

    dual dynamics.

    Droop controls are available for certain types of parallel generator application. Load

    sharing devices are available for use with the isochronous models used in paralleled


    The selected EPG actuator is mounted on the prime mover and mechanically linked

    to the fuel control. The rotary design and output shaft on both ends gives 30°

    (512/524) or 35° (1712/1724) clockwise or counterclockwise travel to low-mass, low friction

    fuel linkages. Preloaded internal return springs supply the shaft torque in the

    decrease-fuel direction and for shutdown should the electronic control signal be lost.

    A rugged cast aluminum housing permits installation of the speed control on the

    engine skid.

    In operation, the control compares the speed of the engine with the desired speed or

    desired load and sets the actuator position to correct discrepancies.

    Gain and stability adjustments tailor the governor’s response to the specific engine.

    EPG controllers with switch-selected dynamics allow stable operation at no load and

    brisk response when the unit is heavily loaded.

  • Product Reviews


    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Warranty Information

    Brand New, 1 Year International Warranty
